HVAC Solutions

DVM S2

  • Available Capacities
  • 6 to 38 tons

Powered by Artificial Intelligence.

DVM S2 is the latest generation of Samsung VRF systems boasting industry leading efficiencies and heating and cooling performance.

6, 8, 10, 12, 14, 16, 18 and 20 ton modules available in both Heat Pump and Heat Recovery. Connect up to 3 units for system capacities up to 38 tons.

  • AC Features
    • image description

      ACTIVE ARTIFICIAL INTELLIGENCE (AI) TECHNOLOGY

      DVM S2 systems feature Artificial Intelligence (AI) with Deep Neural Network algorithms¹ to optimize system operation with high and low pressure control, defrost cycle activation and operation, and low refrigerant monitoring. The new AI technology allows the equipment to operate at exact target pressures and temperatures based on application to save energy.

    • AI High and low pressure control
      image description

      AI HIGH AND LOW PRESSURE CONTROL

      Learns the recent cooling operation pattern² so that the memory cycle status can help reach a targeted low pressure to create the cooling environment desired by the user. To control high pressure, the system automatically recognizes the installed system pipe length and vertical separation and adjusts the target high pressure and reduces unnecessary high pressure, thereby reducing the energy used by the compressor by up to 15%².

    • image description

      AI LOW REFRIGERANT MONITORING

      Uses data from various sensors embedded in indoor and outdoor units to determine the amount of refrigerant required to maintain the system and ensure the best performance³. The system also monitors refrigerant volume in real time during cooling operation and displays a warning code for checkup on the outdoor unit PCB and in central controls (conditions apply).

    • AI DEFROST
      image description

      AI DEFROST

      Learns and trends fan motor current to detect ice formation on the condenser coil during heating operation. This also detects temperature in order to increase heating operation duration between defrost cycles to reduce overall defrost cycle duration.

    • image description

      REFRIGERANT VOLUME REDUCTION

      High performance sub-cooling control allows reduction of main liquid pipe diameter from the outdoor unit to the first HR MCU or Y-joint to reduce overall system charge by an average of over 30%. Accordingly, the installation site can reduce not only the cost of refrigerant, but also the cost of piping and insulation. Conditions apply.

    • WIDE VARIETY OF INDOOR UNIT OPTIONS
      image description

      WIDE VARIETY OF INDOOR UNIT OPTIONS

      Our indoor units offer superior performance, flexible installation, and ease of operation. These units employ innovative technologies, like our WindFree™* Cooling technology, to optimize comfort in any environment. With over 10 different types of indoor units, ranging from 5,000 to 96,000 Btu/h, there are solutions for almost any application.

    • EXTENDED PIPING LENGTH
      image description

      EXTENDED PIPING LENGTH

      DVM S2 systems offer installation flexibility with extended piping length up to 722 ft., vertical separation up to 361 ft. between the outdoor unit and furthest indoor unit, and 164 ft.⁴ between the highest and lowest indoor units.

  • Brochures & Literature

    • Pairs with

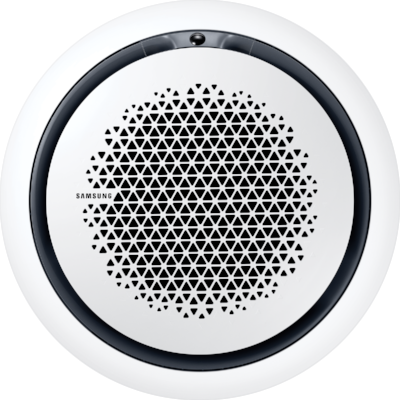

      360 Cassette

      		WindFree™*
      4-Way Cassette
      		WindFree™*
      Mini 4-Way Cassette







      WindFree™*
      1-Way Cassette

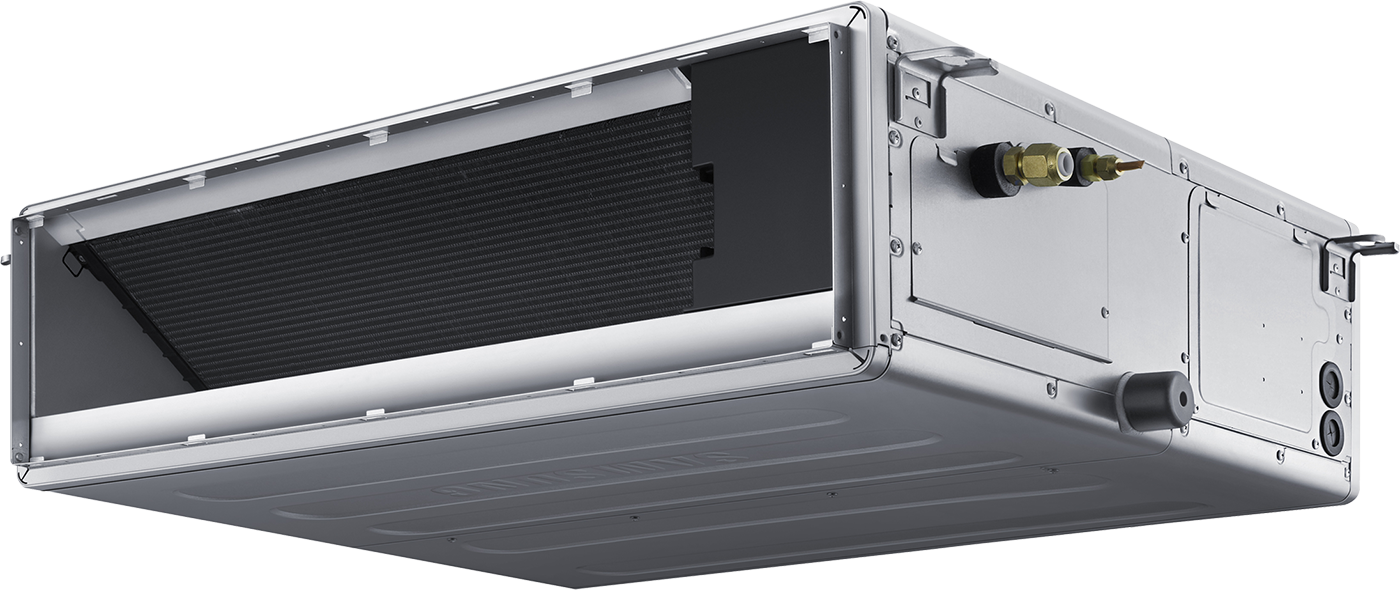

      		Duct S

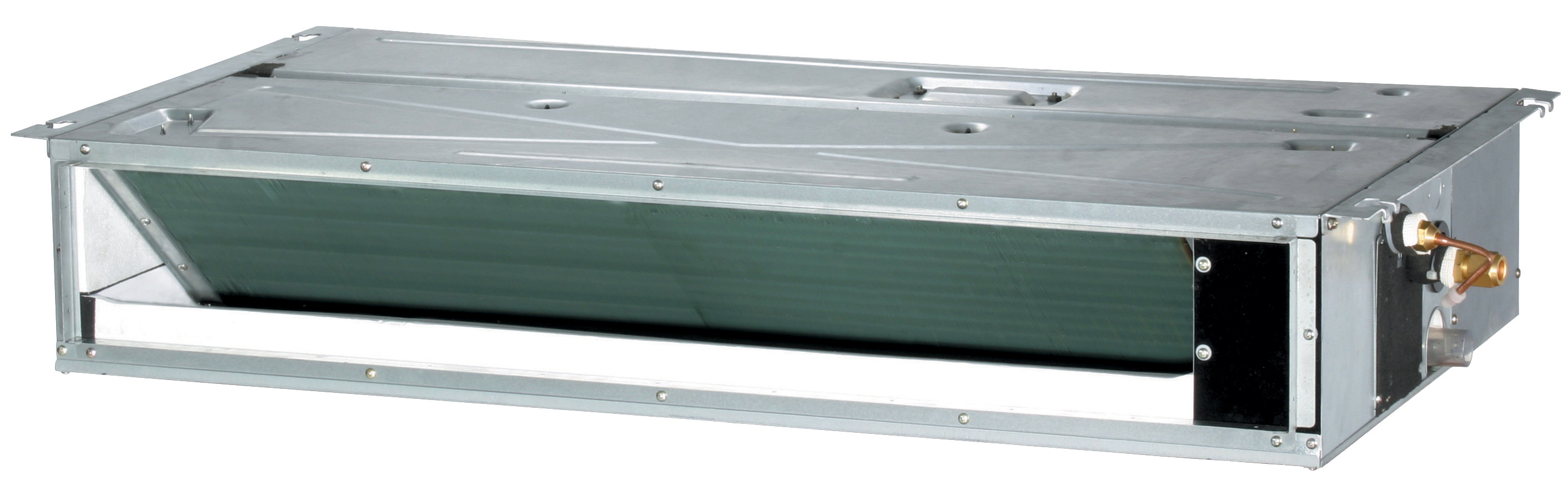

      		Slim Duct







      High Static Pressure
      (HSP) Duct
      		Outside Air Processing
      (OAP) Duct
      		Multi-Position Air Handler (MPAH)

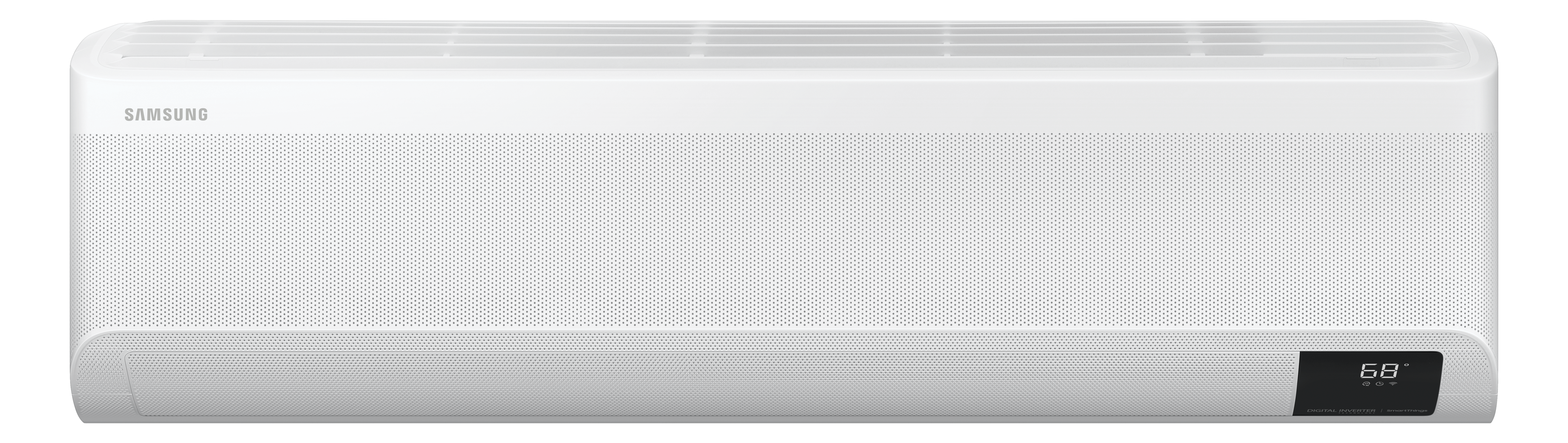

      WindFree™* 2.0

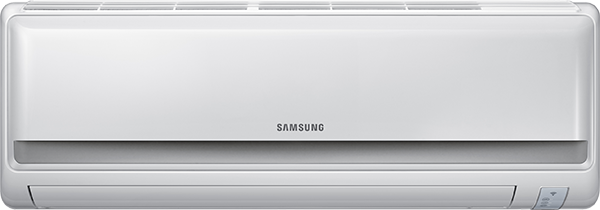

      		Max
      		Under Ceiling

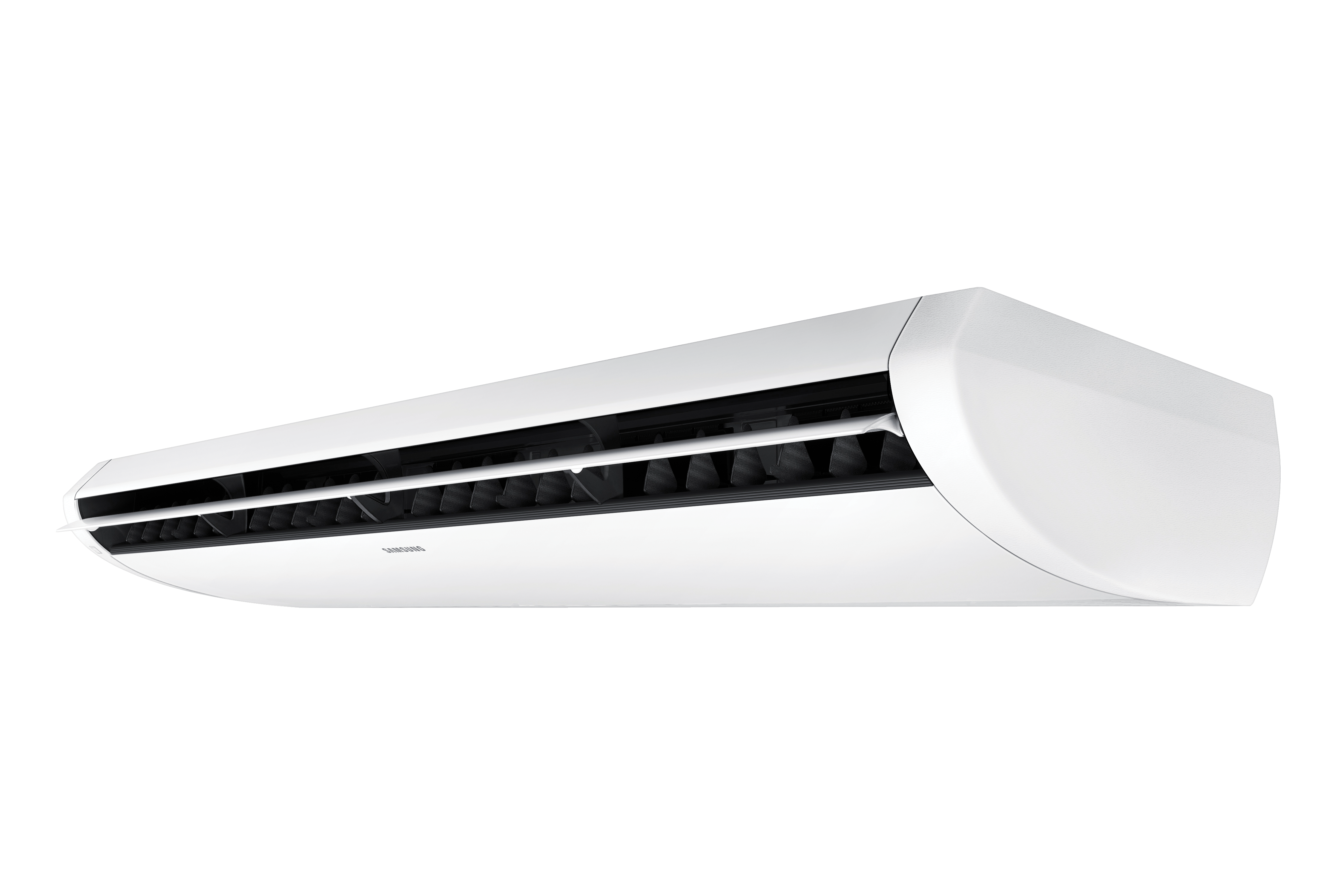

      Big Ceiling

      		Floor Standing

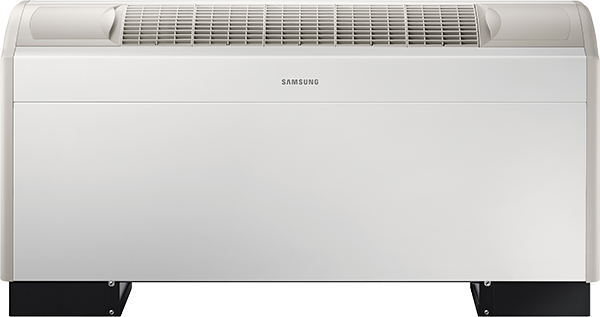

      (concealed type)      		Floor Standing
      (exposed type)







      Fresh Access™ Split-DOAS

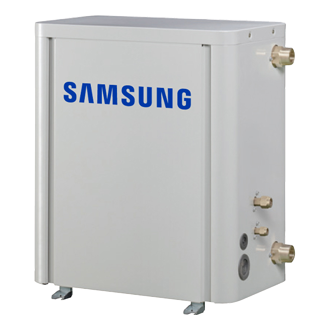

      		Hydro

    • Controls



      Wi-Fi Adapter

      		DMS 2.5

      		DMS 2.5
      + BACnet Gateway

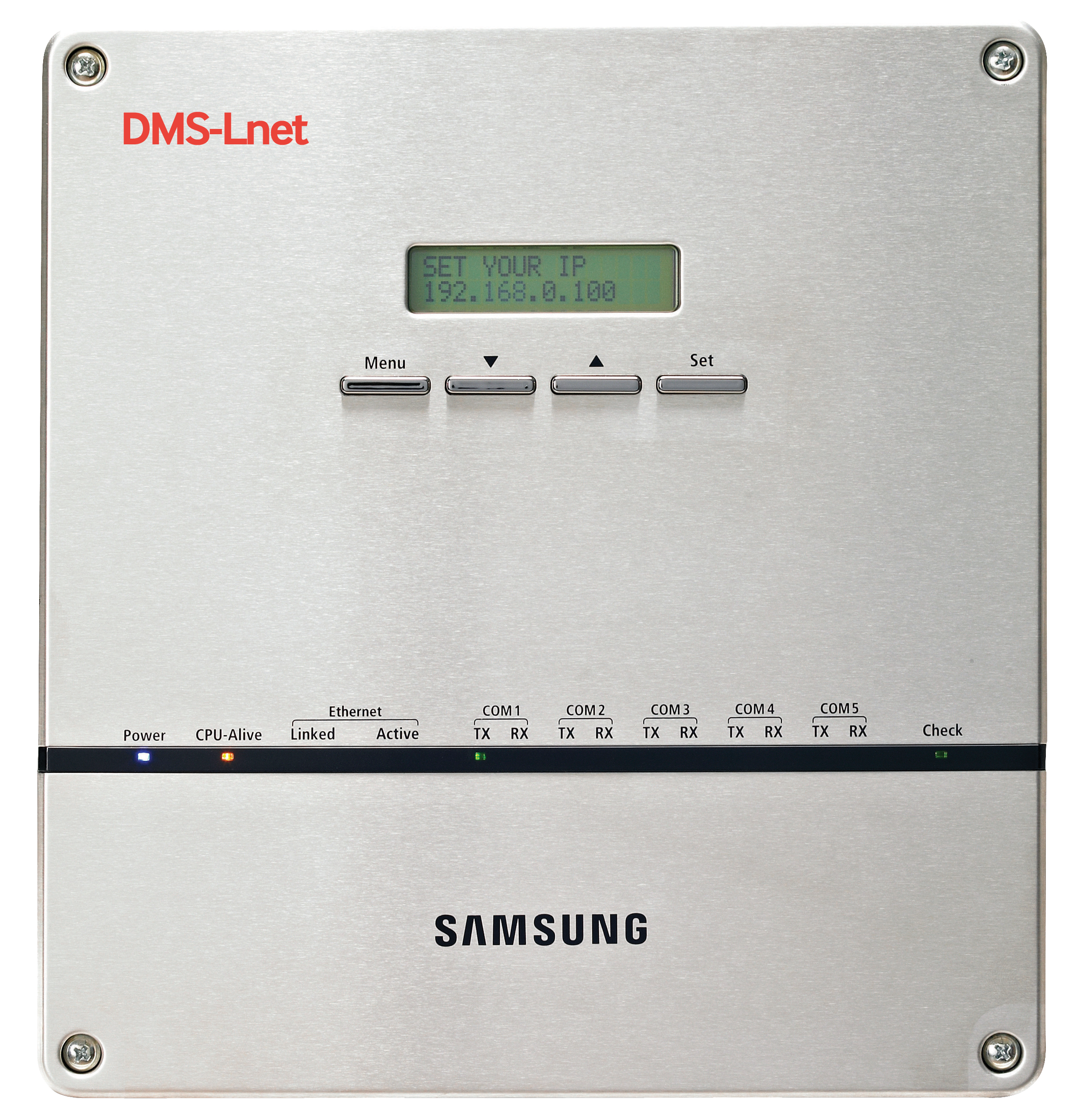

      DMS 2.5
      + LonWorks Gateway      		Pulse Input Module
      (PIM)      		Touch Centralized
      Controller








      Modbus Adapter

    view technical documents

    Additional Information

    Product Registration Required.
    Conditions Apply.


    The AHRI Certified® mark indicates Samsung's participation in the AHRI Certification program. For verification of individual certified products, go to www.ahridirectory.org.


    †Available for download on the Google™ Play store and App Store®. A network connection is required. Samsung application account is necessary.


    DVM-Pro 2 design software is available for download at SamsungHVAC.com.

    *The WindFree™ unit delivers an air current that is under 0.15 m/s while in WindFree™ mode.  Air velocity that is below 0.15 m/s is considered “still air” as defined by ASHRAE 55-2013 (American Society of Heating, Refrigerating, and Air-Conditioning Engineers).

    ¹Machine learning technology built on artificial neural networks (ANN) to enable computers to learn on their own using multiple data points.

    ²Conditions apply. Refer to technical documents for more information.

    ³Requires an initial dedicated refrigerant check function during commissioning.

    ⁴Applies to heat pump models. Heat recovery models provide 131 ft. between the highest and lowest indoor units.
