DVM S Water

  • Available Capacities
  • 1 Ø - 3.18 to 4.55 tons<br>3 Ø - 6 to 50 tons

Water works.

These advanced water source condensers are a great option for retro-fit or new construction projects that are using closed-loop water systems or geothermal sources for their heating and cooling needs.


3.18, 3.98, and 4.55 ton 1 Ø non-modular units available in Heat Pump only. 6, 8, 10, 16, and 20 ton 3 Ø modules available in Heat Pump and Heat Recovery (configured in field). Connect up to 3 units for system capacities up to 50 tons.

  • Features

    • image description

      COMPACT SIZE

      Small condensing unit footprints allow for installation in applications where space is limited, such as on crowded rooftops, or in tight mechanical closets.

    • image description

      ULTIMATE ZONING SOLUTION

      DVM S Water systems allow for precise temperature control in multiple zones, providing comfort to a wide range of occupants. Heat Recovery systems add the capability to heat and cool separate zones simultaneously making it a superior choice.

    • image description

      WIDE VARIETY OF INDOOR UNIT OPTIONS

      Our indoor units offer superior performance, flexible installation, and ease of operation. These units employ innovative technologies, like our Wind-Free™* Cooling technology, to optimize comfort in any environment. With over 10 different types of indoor units, ranging from 5,000 to 96,000 Btu/h, there are solutions for almost any application.

    • image description

      EXTENDED PIPING LENGTH

      DVM S Water systems offer installation flexibility with maximum piping length up to 558 ft., vertical separation up to 164 ft. between the condensing unit and lowest indoor unit (when the condensing unit is above indoor units), 131 ft. between the condensing unit and highest indoor unit (when the condensing unit is below the indoor units), and 164 ft. (Heat Pump) or 131 ft. (Heat Recovery) between the highest and lowest indoor units. Indoor units on a Heat Recovery system connected to the same MCU have a vertical separation up to 49ft.

    • image description

      CONTROL INTEGRATION OPTIONS

      A number of control options are available to fit a variety of project needs, from simple local controllers to full central control options. This allows the capability to integrate into any Building Management System (BMS) through BACnet, LonWorks, or Modbus.

    • image description

      ADVANCED COMMISSIONING AND SERVICE

      DVM S Water systems are equipped with a removable EEPROM chip on the main circuit board to store startup information, system settings, serial number, and other field programmed data. This allows for ease of startup, commissioning, product registration, and future service work when using Samsung service software (S-Net Pro2).

  • Brochures & Literature

    • Pairs With




      360 Cassette

      Wind-Free™*
      4-Way Cassette
      Wind-Free™*
      Mini 4-Way Cassette






      Wind-Free™*
      1-Way Cassette
      Duct S

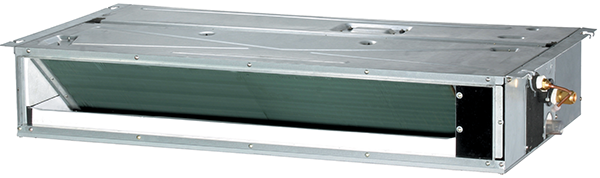

      Slim Duct

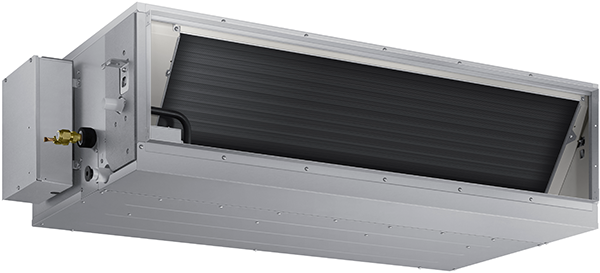

      High Static Pressure
      (HSP) Duct

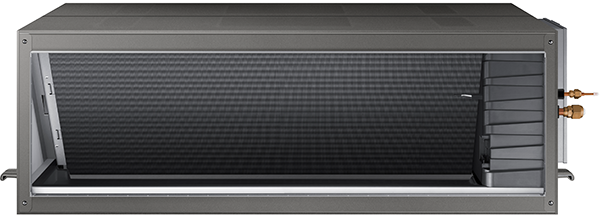

      Outside Air Processing (OAP) DuctDVM Whisper







      MaxBig Ceiling
      Under Ceiling






      Multi-Position Air Handler (MPAH)
      Floor Standing
      (concealed type)
      Floor Standing
      (exposed type)

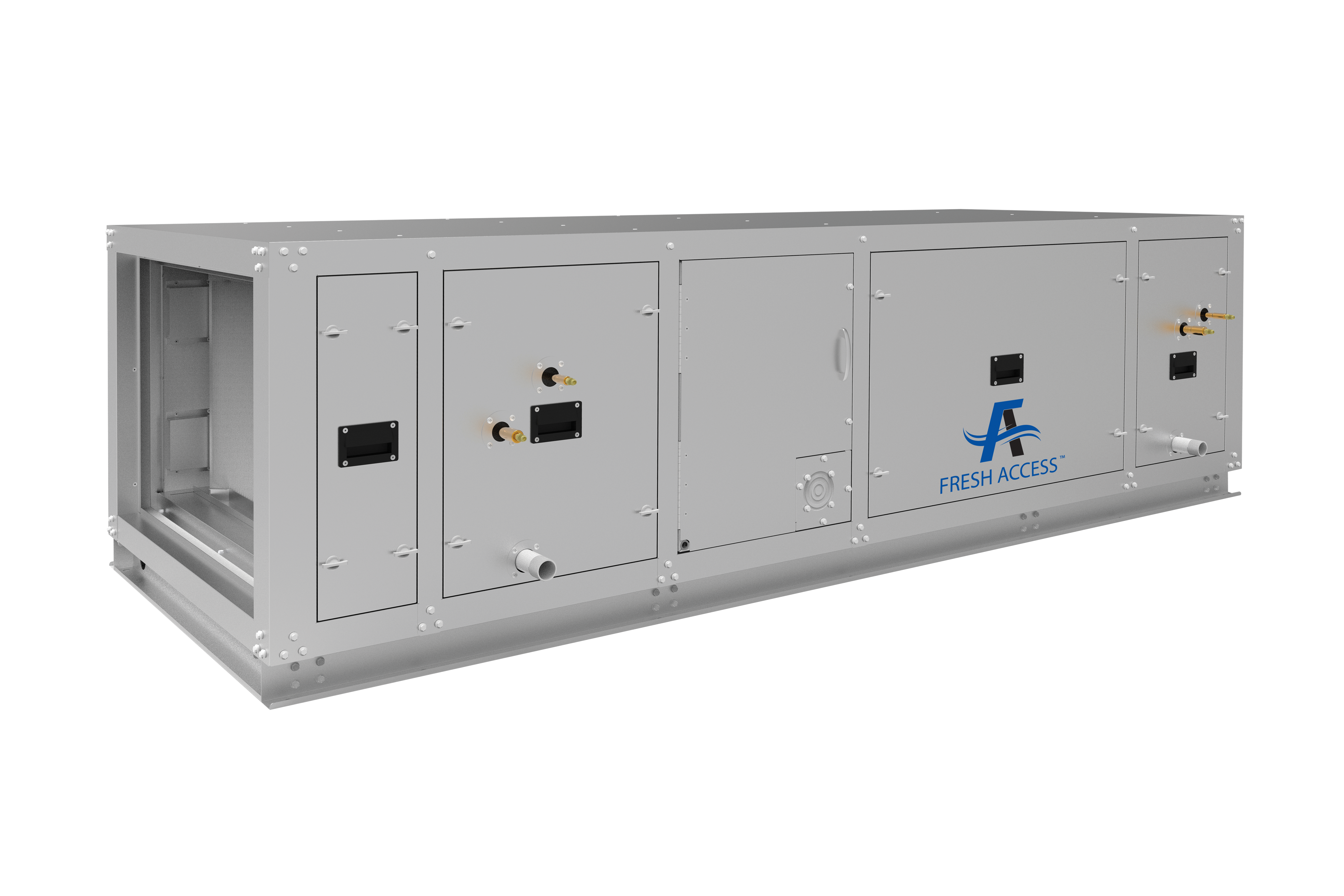

      Fresh Access™ Split-DOAS
    • Controls




      Wi-Fi Adapter

      DMS 2.5

      DMS 2.5
      +BACnet Gateway






      DMS 2.5
      + LonWorks Gateway
      Pulse Input Module
      (PIM)
      Modbus Adapter

    Additional Information

    Product Registration Required.
    Conditions Apply.


    The AHRI Certified® mark indicates Samsung's participation in the AHRI Certification program. For verification of individual certified products, go to www.ahridirectory.org.


    Available for download on the Google™ Play store and App Store®. A network connection is required. Samsung application account is necessary.




    *The Wind-Free™ unit delivers an air current that is under 0.15 m/s while in Wind-Free™ mode.  Air velocity that is below 0.15 m/s is considered “still air” as defined by ASHRAE 55-2013 (American Society of Heating, Refrigerating, and Air-Conditioning Engineers).
