Cooling & Heating

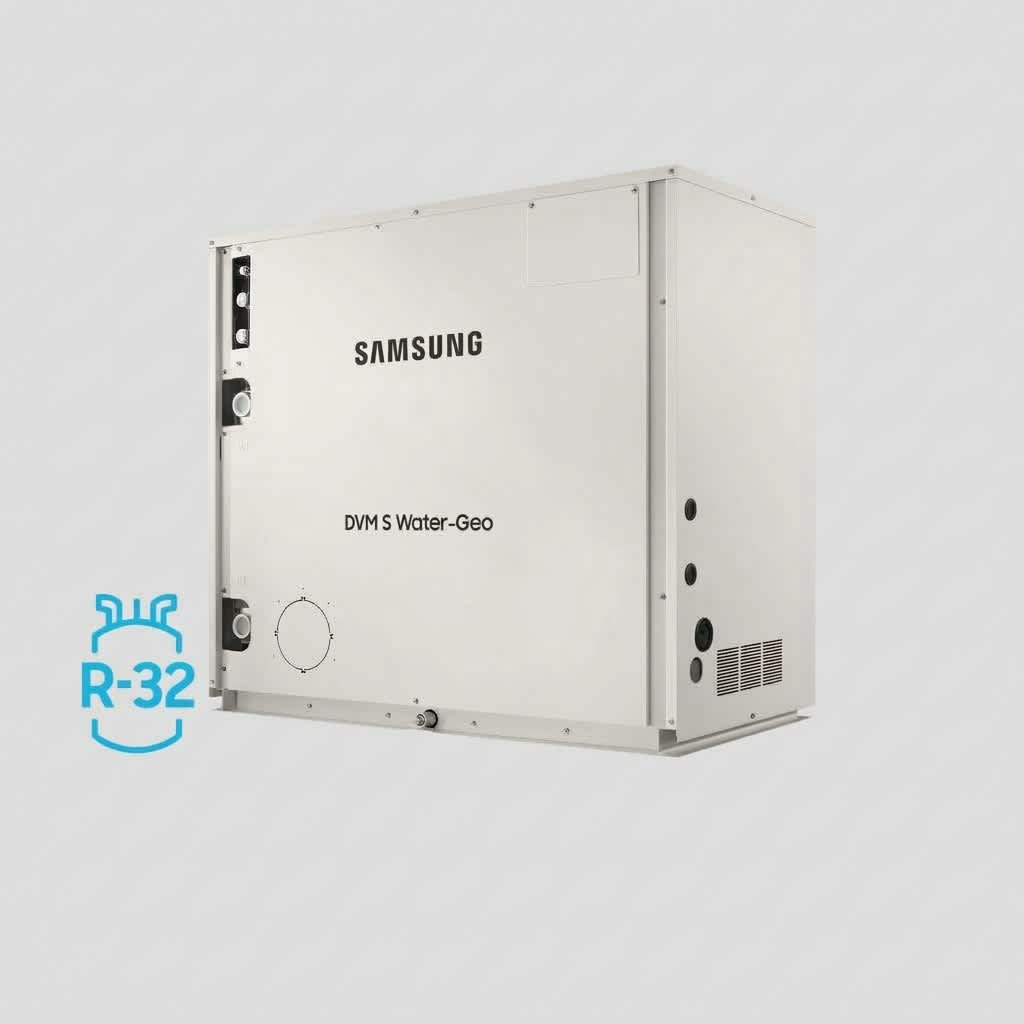

DVM S Water-Geo

  • Available Capacities
  • 1 Ø - 3 to 5 tons<br>3 Ø - 6 to 34 tons

DVM S Water-Geo delivers efficient, year-round heating and cooling using closed-loop water or geothermal sources—now enhanced with next-generation A2L refrigerant technology, advanced safety features, and simplified compliance.

3, 4, and 5-ton 1Ø non-modular units available in Heat Pump only. 6, 8, 10, 16, and 20-ton 3Ø modules available in Heat Pump and Heat Recovery (configured in field). Connect up to 3 units for system capacities up to 34 tons.

  • AC Features
    • UTILIZES R-32 REFRIGERANT
      image description

      UTILIZES R-32 REFRIGERANT

      R-32 refrigerant reduces carbon emissions with a lower global warming potential (GWP) than traditional refrigerants, making it a more sustainable choice for environmentally conscious HVAC solutions.

    • SHUT-OFF VALVE
      image description

      SHUT-OFF VALVE

      New System accessory, Shut-off Valve Box (SVB) has been introduced for 1- to 12 port. Each outlet port of the Mode Change Unit (MCU), and SVB is equipped with a shut-off valve to isolate the downstream refrigerant circuit when a leak is detected, minimizing refrigerant release.

    • INTEGRAL REFRIGERANT DETECTION SENSORS (RDS)
      image description

      INTEGRAL REFRIGERANT DETECTION SENSORS (RDS)

      All R-32 DVM S Water-Geo, Indoor, MCU, and SVB Units are manufactured with Refrigerant Detection Sensors (RDS) inside the unit to continuously monitor for refrigerant leaks within or adjacent to the unit, providing early detection and automatic response to enhance occupant safety.

    • ETRS (ENHANCED TIGHTNESS REFRIGERATION SYSTEM)
      image description

      ETRS (ENHANCED TIGHTNESS REFRIGERATION SYSTEM)

      All system components are ETRS compliant to ensure superior system integrity and leak prevention, supporting long-term reliability and compliance with A2L safety standards.

    • VENTILATION
      image description

      VENTILATION

      DVM S Water-Geo units feature factory-provided duct connections for optional field-installed ventilation. A built-in contact output can activate an external exhaust fan if a refrigerant leak is detected, creating negative pressure to help safely ventilate the space.

    • image description

      COMPACT SIZE

      Small condensing unit footprints allow for installation in applications where space is limited, such as on crowded rooftops, or in tight mechanical closets.

    • image description

      ULTIMATE ZONING SOLUTION

      DVM S Water-Geo systems allow for precise temperature control in multiple zones, providing comfort to a wide range of occupants. Heat Recovery systems add the capability to heat and cool separate zones simultaneously making it a superior choice.

  • Brochures & Literature

    • Pairs With



      360 Cassette

      		WindFree™
      4-Way Cassette
      		WindFree™
      Mini 4-Way Cassette



      WindFree™
      1-Way Cassette
      		Duct S

      		Slim Duct







      High Static Pressure
      (HSP) Duct
      		Outside Air Processing
      (OAP) Duct
      		Multi-Position Air Handler (MPAH)






      WindFree™ 2.0
      		Max
      		Under Ceiling






      Big Ceiling

      		Floor Standing
      (concealed type)      		Floor Standing
      (exposed type)








      Hydro HE

    • Controls



      Wi-Fi Adapter

      		DMS 2.5

      		DMS 2.5
      +BACnet Gateway






      DMS 2.5
      + LonWorks Gateway      		Pulse Input Module
      (PIM)      		Modbus Adapter

    • Additional Information
      Product Registration Required.
      Conditions Apply.


      The AHRI Certified® mark indicates Samsung's participation in the AHRI Certification program. For verification of individual certified products, go to www.ahridirectory.org.


      Available for download on the Google™ Play store and App Store®. A network connection is required. Samsung application account is necessary.


      DVM-S-Water-Geo design software is available for download at SamsungHVAC.com.

      ¹Machine learning technology built on artificial neural networks (ANN) to enable computers to learn on their own using multiple data points.

      ²Conditions apply. Refer to technical documents for more information.

      ³Requires an initial dedicated refrigerant check function during commissioning.

      ⁴Applies to heat pump models. Heat recovery models provide 131 ft. between the highest and lowest indoor units.

    view technical documents

    Additional Information

    WIDE VARIETY OF INDOOR UNIT OPTIONS

    Our indoor units offer superior performance, flexible installation, and ease of operation. These units employ innovative technologies, like our WindFree™* Cooling technology, to optimize comfort in any environment. With over 10 different types of indoor units, ranging from 5,000 to 96,000 Btu/h, there are solutions for almost any application.



    ADVANCED COMMISSIONING AND SERVICE

    DVM S Water-Geo systems are equipped with a removable EEPROM chip on the main circuit board to store startup information, system settings, serial number, and other field programmed data. This allows for ease of startup, commissioning, product registration, and future service work when using Samsung service software (S-Net Pro2).



    CONTROL INTEGRATION OPTIONS

    A number of control options are available to fit a variety of project needs, from simple local controllers to full central control options. This allows the capability to integrate into any Building Management System (BMS) through BACnet, LonWorks, or Modbus.



    EXTENDED PIPING LENGTH

    DVM S Water-Geo systems offer installation flexibility with maximum piping length up to 558 ft., vertical separation up to 164 ft. between the condensing unit and lowest indoor unit (when the condensing unit is above indoor units), 131 ft. between the condensing unit and highest indoor unit (when the condensing unit is below the indoor units), and 164 ft. (Heat Pump) or 131 ft. (Heat Recovery) between the highest and lowest indoor units. Indoor units on a Heat Recovery system connected to the same MCU have a vertical separation up to 49ft.
