The DVM S Mini is a compact heat pump system that provides efficient heating and cooling for multiple rooms while using less energy than traditional systems. Its quiet operation and flexible installation make it an ideal solution for comfortable, reliable whole-home climate control.
DVM S Mini
- Available Capacities (Btu/h)
- 36K / 48K / 60K
3, 4, and 5 ton 1 Ø non-modular units available in both Heat Pump and Heat Recovery using environmentally friendly, low GWP R-32 refrigerant. Connect up to 10 indoor units to a single system.
-
AC Features
-
UTILIZES R-32 REFRIGERANT
R-32 refrigerant reduces carbon emissions with a lower global warming potential (GWP) than traditional refrigerants, making it a more sustainable choice for environmentally conscious HVAC solutions.
-
AVAILABLE IN HEAT RECOVERY
The new DVM S Mini Heat Recovery units can connect with HR Changer for simultaneous heating and cooling in one system.
-
ACTIVE AI
Intelligently enhances system performance and improves reliability. AI Low Pressure Control learns operational patterns to increase cooling speed to reach the target room temperature faster. AI High Pressure control optimizes refrigerant control and can reduce energy use as much as 15%.
-
HIGH PERFORMANCE HEATING
DVM S Mini Heat Pump systems have high heating performance down to -22°F (-30°C) with up to 36% increased heating capacity vs. the previous generation.
-
FLEXIBLE INSTALLATION
Refrigerant piping can enter from the front, rear, bottom, or side of the outdoor unit.
-

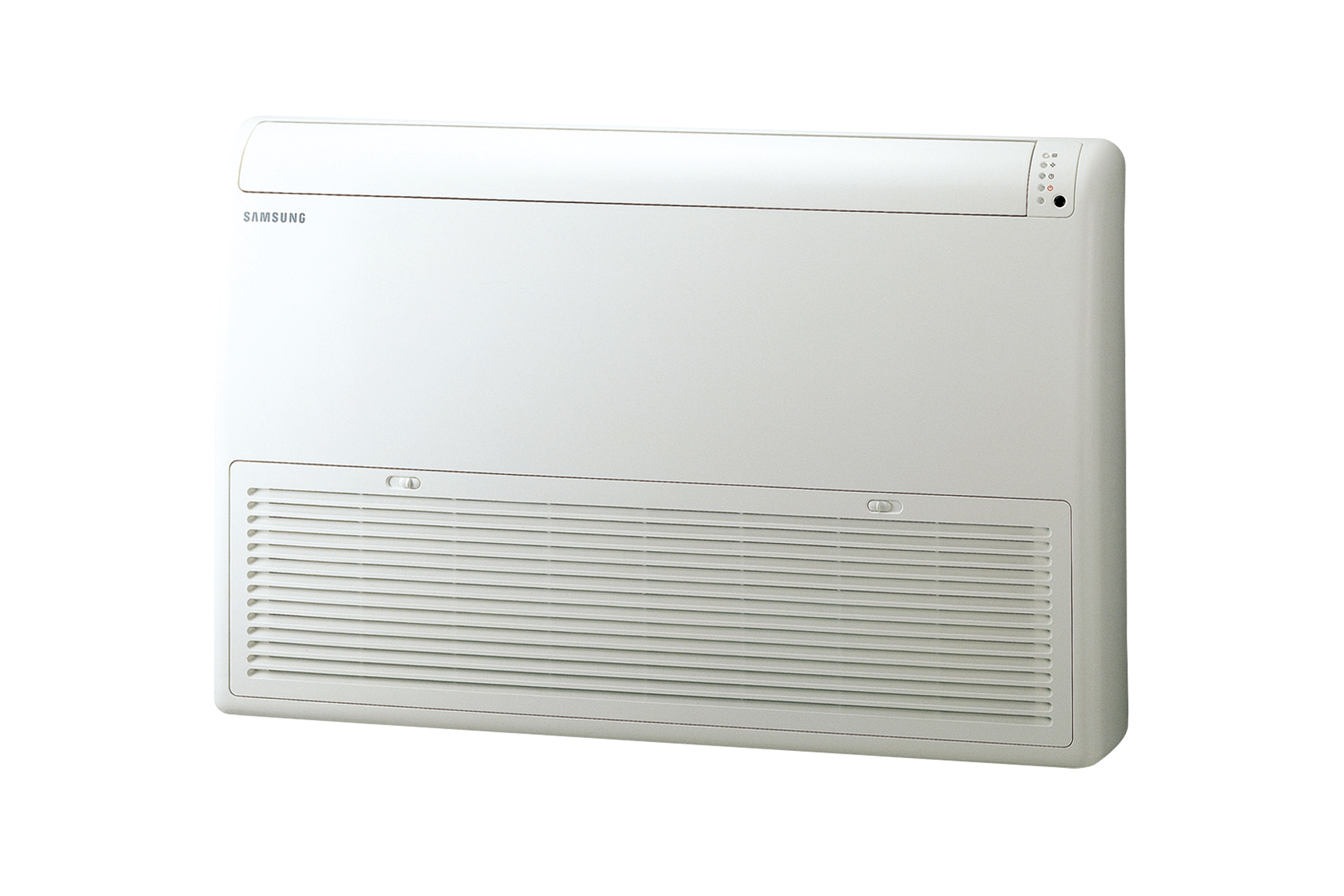

WIDE VARIETY OF INDOOR UNIT OPTIONS
Our indoor units offer superior performance, flexible installation, and ease of operation. These units employ innovative technologies, like our WindFree™* Cooling technology, to optimize comfort in any environment. With over 10 different types of indoor units, ranging from 5,000 to 60,000 Btu/h, there are solutions for almost any application.
-
EXTENDED PIPING LENGTH
DVM S Mini systems offer installation flexibility with maximum piping length up to 492 ft., vertical separation up to 164 ft. between the outdoor unit and lowest indoor unit (when the outdoor unit is above the indoor units), and 131 ft. between the highest and lowest indoor unit (when the outdoor unit is below the indoor units).
-
CONTROL INTEGRATION OPTIONS
A number of control options are available to fit a variety of project needs, from simple local controllers to full central control options. This allows the capability to integrate into any Building Management System (BMS) through BACnet, LonWorks, or Modbus.
-
ADVANCED COMMISSIONING AND SERVICE
DVM S Eco systems are equipped with a removable EEPROM chip on the main circuit board to store startup information, system settings, serial number, and other field programmed data. This allows for ease of startup, commissioning, product registration, and future service work when using Samsung service software (S-Net Pro2).
-
-
Brochures & Literature
-
Pairs With
-
Controls

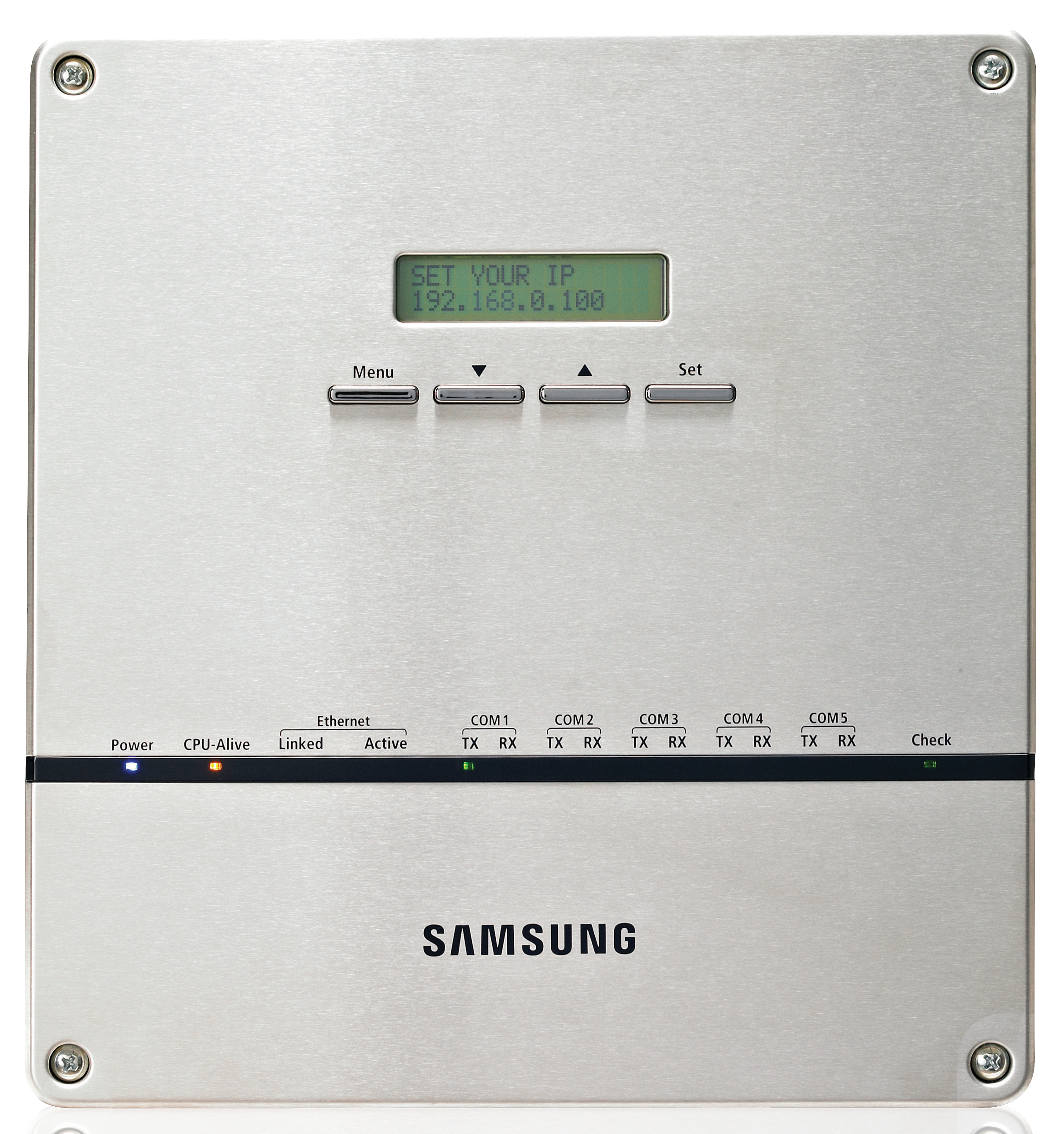

DMS 2.5DMS 2.5
+ LonWorks GatewayDMS 2.5

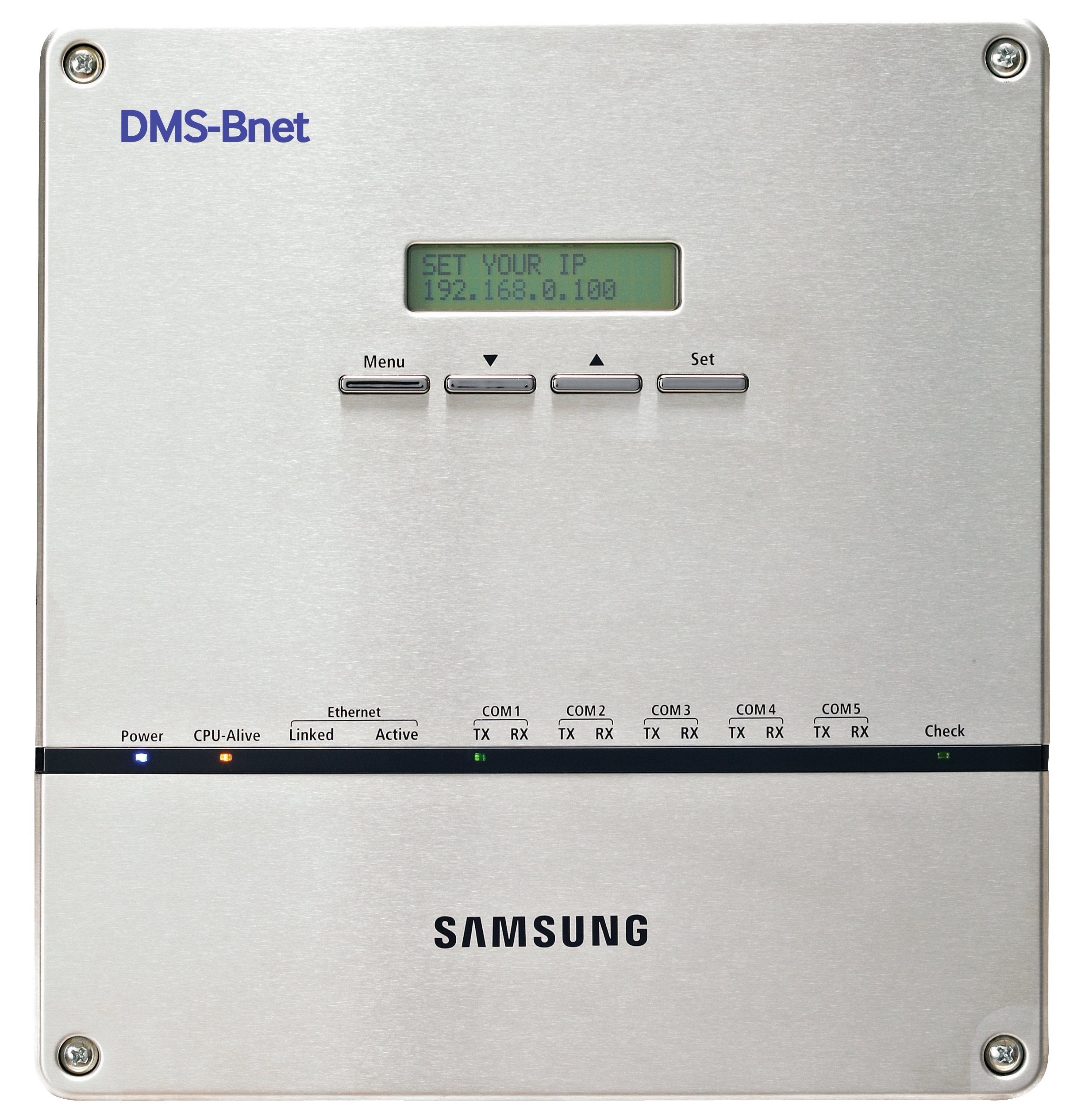

+ BACnet Gateway
Pulse Input Module

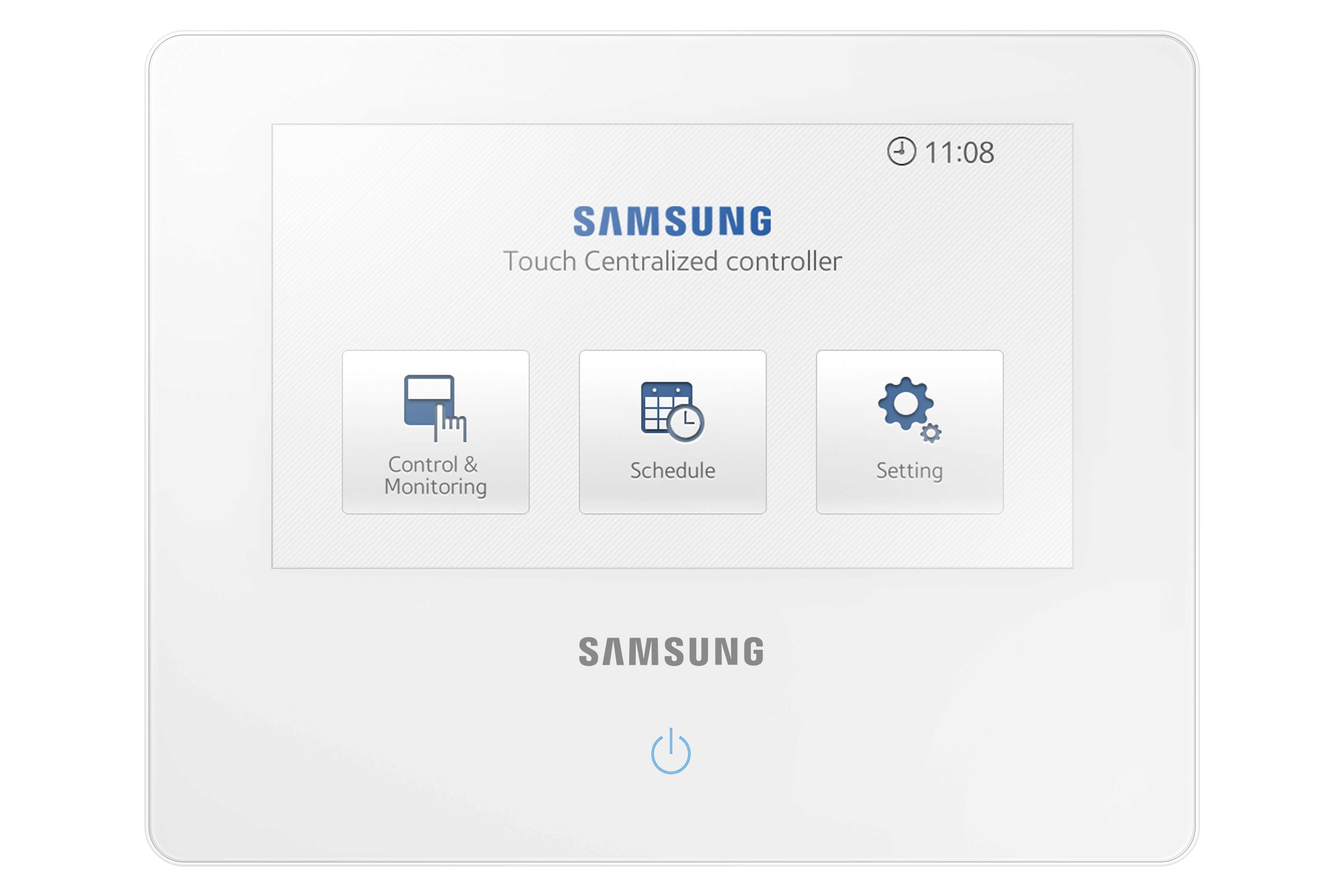

(PIM)Touch Centralized

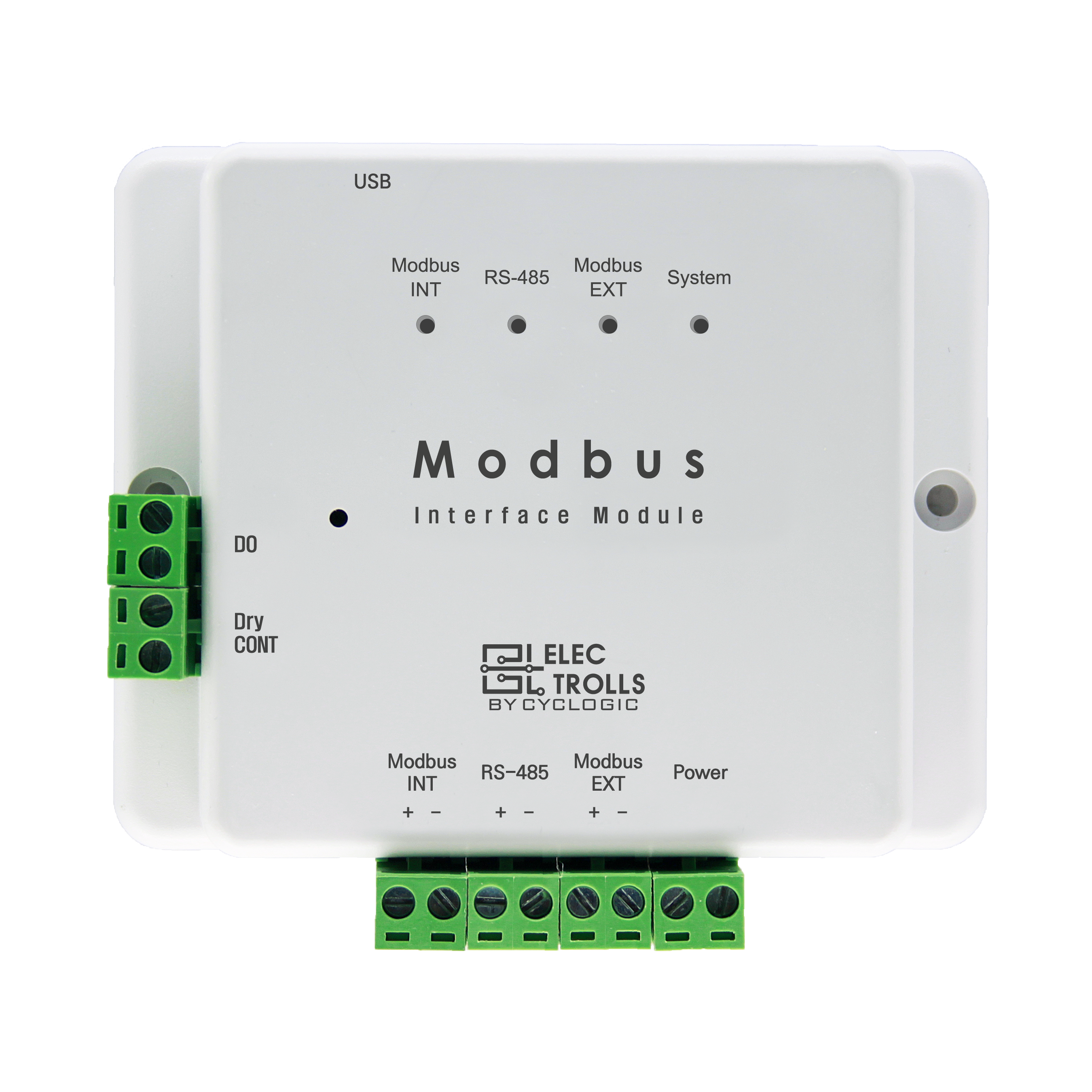

ControllerModbus Adapter -
Additional Information
Product Registration Required.
Conditions Apply.
Meets CEE Tier 1 criteria
The AHRI Certified® mark indicates Samsung's participation in the AHRI Certification program. For verification of individual certified products, go to www.ahridirectory.org.
Available for download on the Google™ Play store and App Store®. A network connection is required. Samsung application account is necessary.
Proper sizing and installation of equipment is critical to achieve performance. Split system air conditioners and heat pumps (excluding ductless systems) must be matched with appropriate coil components to meet Energy Star® criteria. Ask your contractor for details or visit www.energystar.gov.
Additional Information
 | SHUT-OFF VALVE The DVM S Mini Heat Pump includes a shut-off valve in the outdoor unit, while the Heat Recovery version locates it in the HR Changer to isolate the downstream circuit and reduce refrigerant loss during a leak. |
 | INTEGRAL REFRIGERANT DETECTION SENSORS (RDS) All DVM S Mini indoor units, HR Changer, and MSB are manufactured with Refrigerant Detection Sensors (RDS) inside the unit to continuously monitor for leaks and automatically respond to enhance occupant safety. |
| ETRS (ENHANCED TIGHTNESS REFRIGERATION SYSTEM) CERTIFIED: All indoor units are ETRS Certified to ensures superior system integrity and leak prevention, supporting long-term reliability and compliance with A2L safety standards. |
 | COMFORT HUMIDITY CONTROL All indoor units feature comfort humidity control. Utilizing an integral humidity sensor, the system optimizes the indoor unit coil temperature according to the dew point, maximizing energy savings while still providing space dehumidification and occupant comfort. |
 | BUILT IN WI-FI All indoor and outdoor units are shipped with an built in Wi-Fi module, allowing user to remotely monitor, control, receive automatic updates, and connect with SmartThings App. |
